Fact Check: Joule-Thomson Effect

In thermodynamics, the Joule-Thomson effect describes the temperature of a real gas or liquid (as differentiated from ideal gas) when it is forced through a valve or porous plug while keeping it insulated so that no heat is exchanged with the environment. This procedure is called a throttling process or Joule-Thomson process. At room temperature, all gases except hydrogen, helium, and neon cool upon expansion of the Joule-Thomson process when being throttled through an orifice; these three gases experience the same effect but only at lower temperatures. Most liquids such as hydraulic oils will be warmed by the throttling process.

The gas-cooling throttling process is commonly exploited in refrigeration processes such as liquefiers in air separation industrial process. In hydraulics, the warming effect from the Joule-Thomson throttling can be used to find internally leaking valve as these will involve heat which can be detected by thermocouple or thermal-imaging camera. Throttling is a fundamentally irreversible process. The throttling due to the flow resistance in supply lines, heat exchangers, generators and other components of (thermal) machines is a source of losses that limit their performance.

The effect is named after James Prescott Joule and William Thomson, 1st Baron Kelvin, who discovered it in 1852. It followed upon earlier work by Joule on Joule expansion, in which a gas undergoes free expansion in a vacuum and the temperature is unchanged, if the gas is ideal.

In practice, the Joule-Thomson effect is achieved by allowing the gas to expand through a throttling device (usually a valve) which must be very well insulated to prevent any heat transfer to or from the gas. No external work is extracted from the gas during the expansion (the gas must not be expanded through a turbine, for example).

The cooling produced in the Joule-Thomson expansion makes it a valuable tool in refrigeration. The effect is applied in the Linde technique as a standard process in the petrochemical industry, where the cooling effect is used to liquefy gases, and also in many cryogenic applications (e.g. for the production of liquid oxygen, nittogen, and argon). A gas must be below its inversion temperature to be liquefied by the Linde cycle. For this reason, simple Linde cycle liquefiers, starting from ambient temperature, cannot be used to liquefy helium, hydrogen, and neon. However, the Joule-Thomson effect can be used to liquefy even helium, provided that the helium gas is first cooled below its inversion temperature of 40 Kelvin.

x-------x

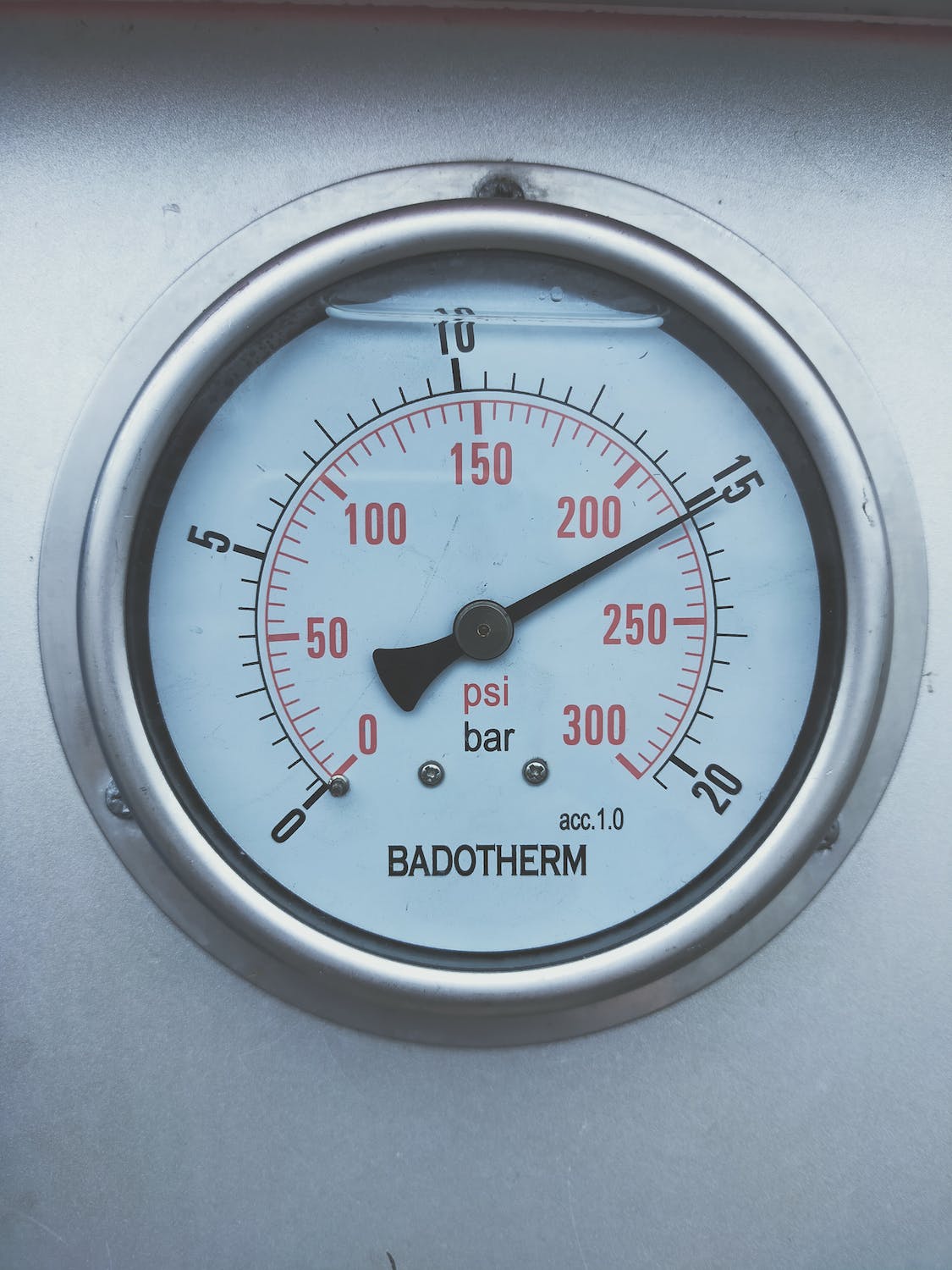

Picture from Pexels.
